D12a-M1-AA
Wird berechnet...

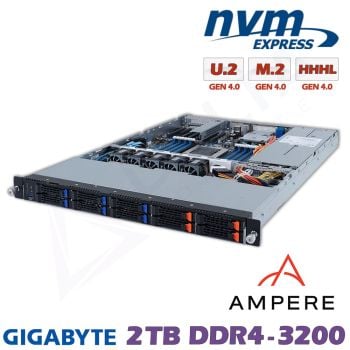

Ampere® Altra® ARM-Server von DELTA:
1HE Rack-Chassis mit redundanten 650W Netzteilen (80Plus Platinum / 94%+) und:
- 6x 2.5" HotSwap Einschub für SATA/SAS
- 4x 2.5" HotSwap Einschub für NVMe
- 2x M.2 NGFF Connector (PCI-E 4.0 x4 Slot: 22110)
Motherboard
- System on Chip
- 16 DIMM Slots (max. 2048GB DDR4)
- 2x 10/100/1000Base TX GbE Ports
(Intel® i350 Dual Gigabit Ethernet Controller)
- 6x SATA3 (6Gb/s) Ports (RAID 0,1,5,10)
- PCI Slot:
1x PCI-E 4.0 x16 Slot (FHHL)
- Integrated IPMI 2.0 with Dedicated LAN
- Integrated Aspeed AST2500 BMC
- 4x USB 3.0
Bezeichnung | Kerne | Takt | Turbo | Cache | Bus Speed | Mem. Ch. | Speichertakt | Merkmale | HTT | TDP CPU | Preis |
---|
| 32 | 1,5 GHz | 1,7 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 65 Watt | |
| 64 | 2,0 GHz | 2,2 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 95 Watt | |
| 64 | 2,4 GHz | 2,6 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 125 Watt | |
| 64 | 2,8 GHz | 3,0 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 180 Watt | |
| 64 | 3,0 GHz | 3,3 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 220 Watt | |
| 72 | 2,8 GHz | 3,0 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 195 Watt | |
| 80 | 2,4 GHz | 2,6 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 150 Watt | |
| 80 | 2,6 GHz | 2,8 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 185 Watt | |
| 80 | 2,8 GHz | 3,0 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 210 Watt | |
| 80 | 3,0 GHz | 3,3 GHz | 32 MB | - | 8 | 3200 MHz | - | No | 250 Watt | |
| 96 | 2,8 GHz | 3,0 GHz | 16 MB | - | 8 | 3200 MHz | - | No | 220 Watt | |
| 128 | 2,8 GHz | 3,0 GHz | 16 MB | - | 8 | 3200 MHz | - | No | 250 Watt | |
