D10x-M4-SP
Wird berechnet...
NEU

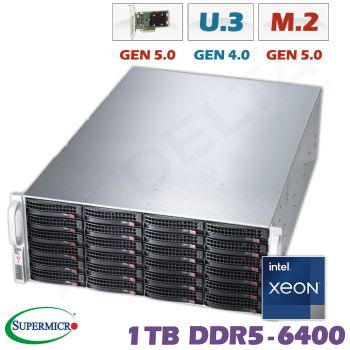

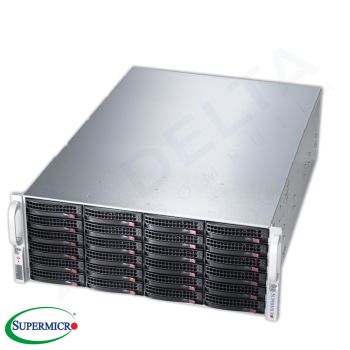

Intel Xeon Hochleistungs-Server von DELTA:
4HE Rack-Chassis mit redundanten 1200W Netzteilen (80Plus Titanium Level / 96%) und:
- 8x 2.5" HotSwap Einschub für NVMe +
16x 3.5" HotSwap Einschub für SATA/SAS
ODER
24x 3.5" HotSwap Einschub für SAS (1x oder 2x Expander)
- optional für hinten: 2x HotSwap Einschübe für 2.5" SATA/SAS
- 2x M.2 NGFF Connector (PCI-E 5.0 x2 Slot: 22110)
Motherboard
- System on Chip
- 8 DIMM Slots (max. 1024GB DDR5)
- 2x 10GBase-T 10GbE Ports
(Intel® X550 Dual-Port 10Gigabit Ethernet Controller)
- 4x SATA3 (6Gb/s) Ports
- PCI Slots:
3x PCI-E 5.0 x16 Slots (HHFL)
3x PCI-E 5.0 x8 Slots (HHFL)
6x PCI-E 5.0 NVMe x8 Internal Ports
- Integrated IPMI 2.0 with Dedicated LAN
- Integrated Aspeed AST2600 BMC
- 2x USB 3.2
| Bezeichnung | Kerne | Takt | Turbo | Cache | Bus Speed | Mem. Ch. | Speichertakt | Merkmale | HTT | TDP CPU | Preis |
|---|
| 12 | 2,20 GHz | 4,10 GHz | 48,00 MB | 3x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 150 Watt | |
| 8 | 3,50 GHz | 4,30 GHz | 48,00 MB | 3x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 150 Watt | |
| 16 | 2,30 GHz | 4,10 GHz | 72,00 MB | - | 8 | 6400 MHz | - | Yes | 150 Watt | |
| 16 | 2,30 GHz | 3,80 GHz | 72,00 MB | 3x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 150 Watt | |
| 16 | 3,20 GHz | 4,20 GHz | 72,00 MB | 3x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 190 Watt | |
| 24 | 2,40 GHz | 4,00 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 210 Watt | |
| 24 | 2,60 GHz | 4,10 GHz | 144,00 MB | - | 8 | 6400 MHz | - | Yes | 225 Watt | |
| 24 | 3,00 GHz | 4,20 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 255 Watt | |
SALE | 32 | 2,30 GHz | 4,10 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 225 Watt | |
| 64 | 2,40 GHz | 3,20 GHz | 96,00 MB | 4x UPI 16,0 GT/s | 8 | 5600 MHz | 1x HDCC (C-0) | No | 205 Watt | |
| 96 | 2,20 GHz | 3,10 GHz | 96,00 MB | 4x UPI 24,0 GT/s | 8 | 5600 MHz | 1x HDCC (C-0) | No | 250 Watt | |
| 96 | 2,40 GHz | 3,20 GHz | 96,00 MB | 4x UPI 20,0 GT/s | 8 | 6400 MHz | 1x HDCC (C-0) | No | 250 Watt | |
| 112 | 2,00 GHz | 2,70 GHz | 96,00 MB | 4x UPI 16,0 GT/s | 8 | 5600 MHz | 1x HDCC (C-0) | No | 250 Watt | |
| 128 | 1,80 GHz | 2,60 GHz | 96,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | 1x HDCC (C-0) | No | 225 Watt | |
| 144 | 1,90 GHz | 2,70 GHz | 108,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | 1x HDCC (C-0) | No | 250 Watt | |
| 144 | 2,20 GHz | 3,00 GHz | 108,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | 1x HDCC (C-0) | No | 330 Watt | |
| 8 | 4,00 GHz | 4,30 GHz | 48,00 MB | 3x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 165 Watt | |
| 16 | 3,60 GHz | 4,30 GHz | 72,00 MB | 3x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 210 Watt | |
| 24 | 2,70 GHz | 4,10 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 210 Watt | |
| 32 | 2,50 GHz | 3,80 GHz | 288,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 250 Watt | |
| 32 | 2,50 GHz | 3,90 GHz | 144,00 MB | - | 8 | 6400 MHz | - | Yes | 245 Watt | |
| 36 | 2,00 GHz | 4,10 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 205 Watt | |
| 32 | 2,90 GHz | 4,00 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 270 Watt | |
| 32 | 2,90 GHz | 4,20 GHz | 144,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 270 Watt | |
| 48 | 2,10 GHz | 3,80 GHz | 288,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 270 Watt | |
| 48 | 2,50 GHz | 3,70 GHz | 288,00 MB | - | 8 | 6400 MHz | - | Yes | 300 Watt | |
| 48 | 2,70 GHz | 3,90 GHz | 288,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 330 Watt | |
| 48 | 2,50 GHz | 4,10 GHz | 192,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 300 Watt | |
| 64 | 2,20 GHz | 3,80 GHz | 320,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 330 Watt | |
| 64 | 2,50 GHz | 3,60 GHz | 336,00 MB | - | 8 | 6400 MHz | - | Yes | 350 Watt | |
| 64 | 2,40 GHz | 3,90 GHz | 336,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 350 Watt | |
| 64 | 2,40 GHz | 3,90 GHz | 336,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 330 Watt | |
| 80 | 2,00 GHz | 3,20 GHz | 336,00 MB | - | 8 | 6400 MHz | - | Yes | 350 Watt | |
| 86 | 2,00 GHz | 3,80 GHz | 336,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 350 Watt | |
| 86 | 2,00 GHz | 3,80 GHz | 336,00 MB | 4x UPI 24,0 GT/s | 8 | 6400 MHz | - | Yes | 350 Watt | |
